Since the release of the first generation 1470nm product in January this year, Xi'an Lumcore Optoelectronics Technology Co., Ltd. (hereinafter referred to as "Lixin Optoelectronics") has officially released new upgraded 1470nm 3W and 1470nm 5W laser chips through multiple structural iterations and upgrades. The electro-optical conversion efficiency of the new generation 1470nm chip has increased from 25% to 36%, reaching the leading level in the industry.
Typical applications
scientific research
Laser equipment
biomedical science
Medium to high power industrial fiber laser pumping

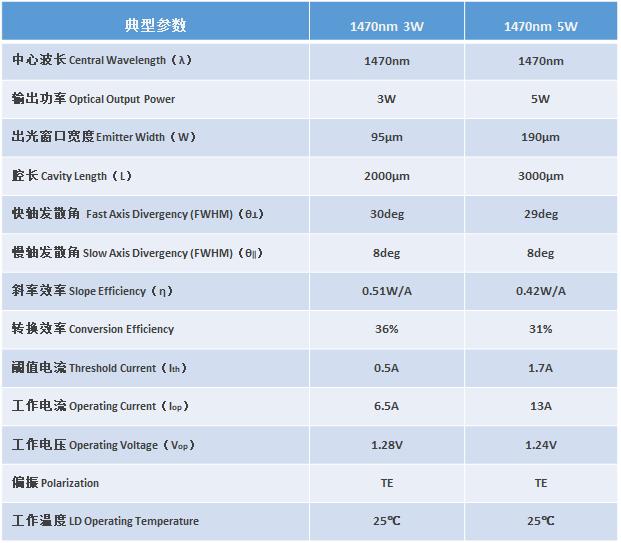

Product parameters

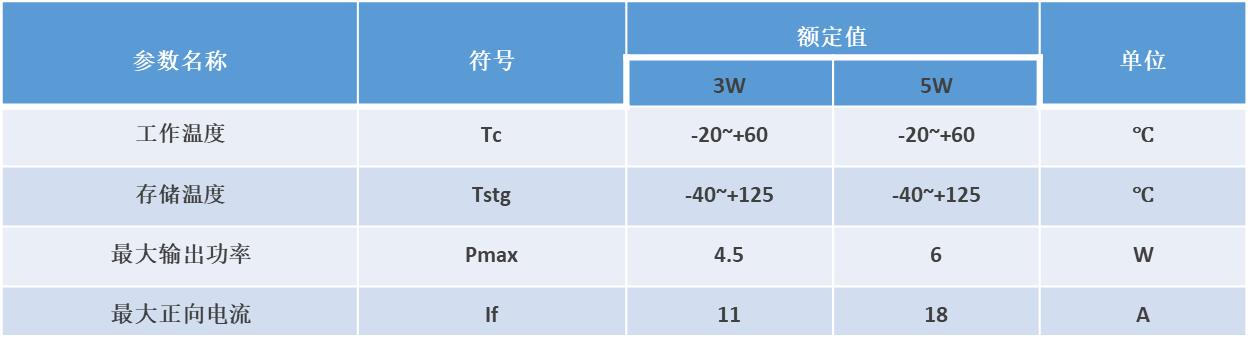

Limit parameter
Test curve

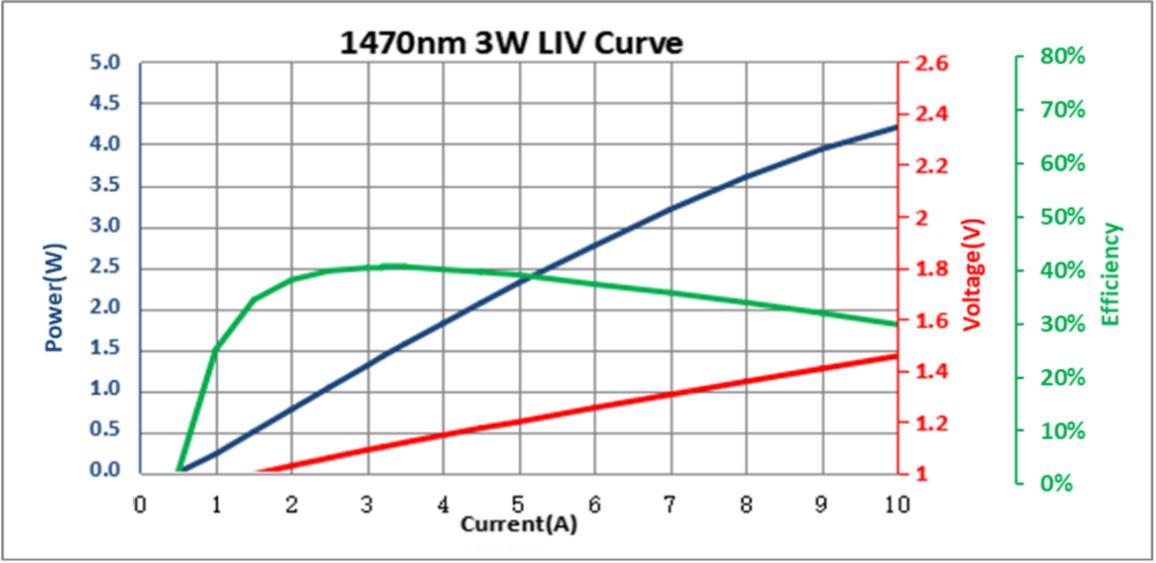

1470nm 3W LIV test curve

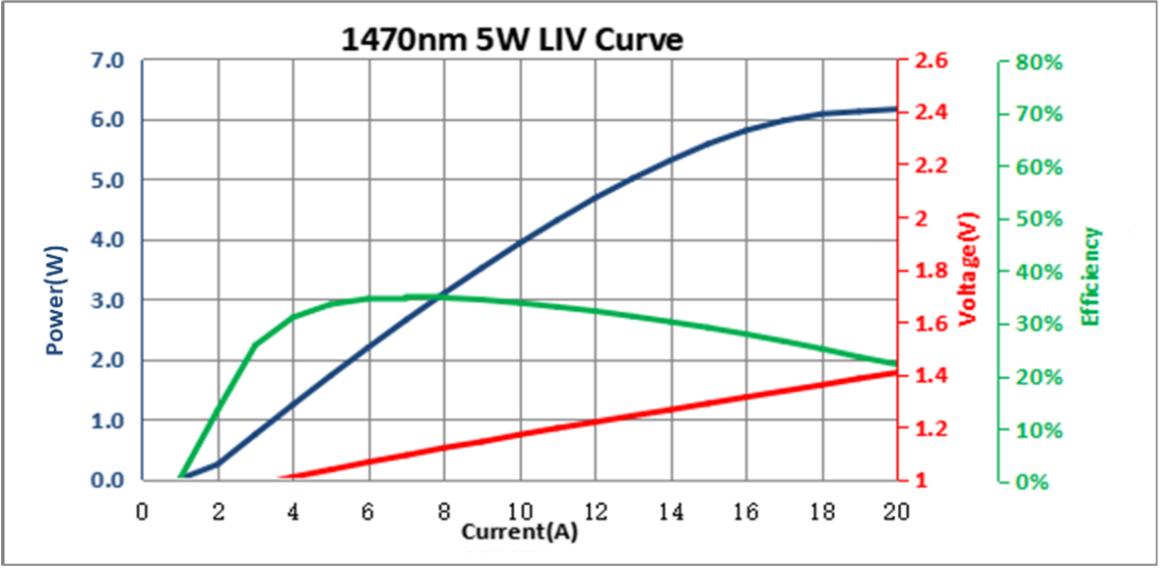

1470nm 5W LIV test curve
Product advantages
The new 1470nm chip has achieved significant breakthroughs in photoelectric conversion efficiency. After verification, under the conditions of a current of 12A and a water temperature of 30 ℃, there is no significant attenuation after 1500 hours of aging, and the product efficiency has reached a leading level compared to domestic and foreign competitors.

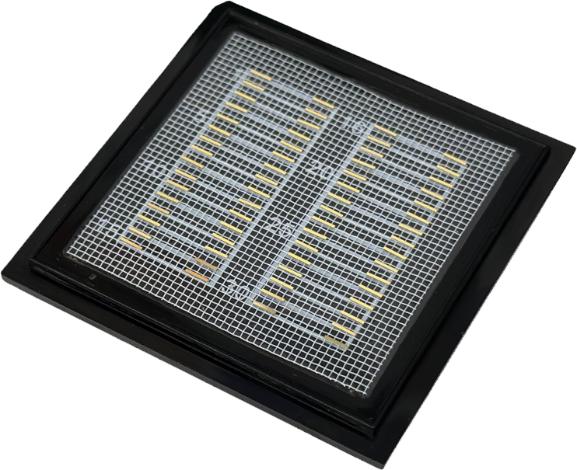

The LC-UMC-14XX series laser chips are independently designed and produced by Xi'an Lumcore Optoelectronics, with a wavelength tolerance range controlled below 10nm, which is better than the industry average control level of 20nm tolerance.
In recent years, the application of lasers in the field of medical aesthetics has been increasing and has received widespread attention from the industry. Xi'an Lumcore Optoelectronics has been committed to continuous innovation and research and development of high-power semiconductor laser chip technology in the field of medical aesthetics.
Xi'an Lumcore Optoelectronics takes the design, research and development, and manufacturing of high-end semiconductor laser chips as its core competitiveness. It can provide customized products and solutions according to customer needs, quickly respond to customer needs, and continuously provide customers with high-power, high reliability, and cost-effective laser chips.
In the future, Xi'an Lumcore Optoelectronics will continue to fulfill its corporate mission of "creating the source of lasers with Chinese chips", always guided by the market and driven by applications, continuously launching more and more competitive products in the market, and providing customers with higher quality, more diverse products and technical services.
